Magnesium Asphalt Lutes
Contact your dealer for details.

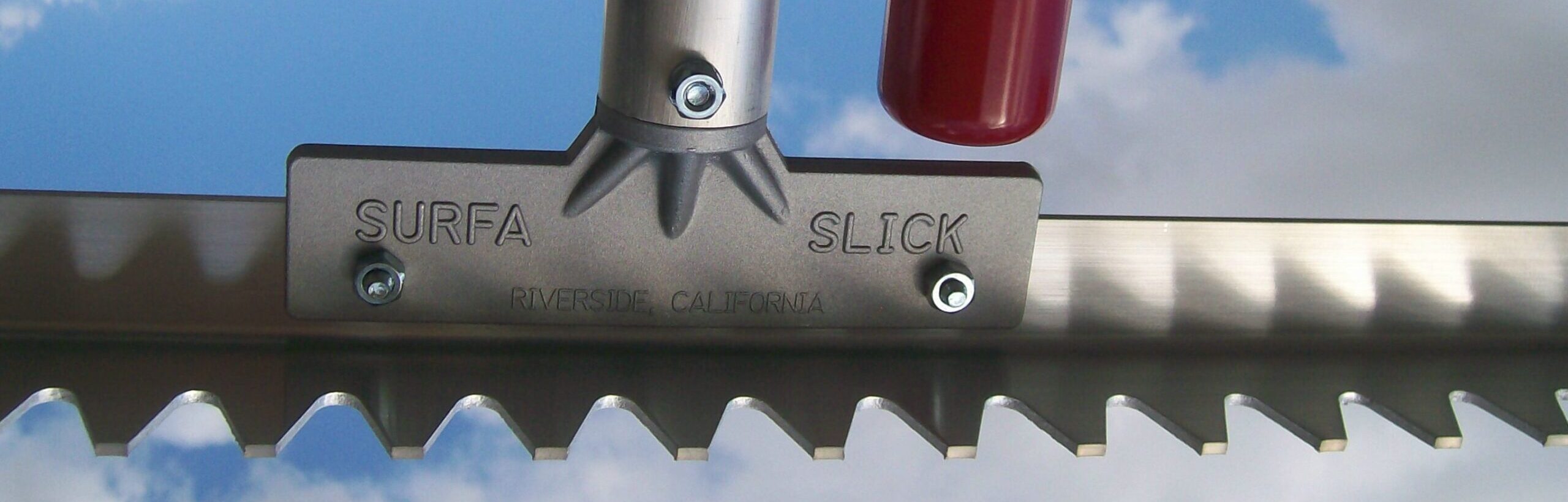

Our magnesium asphalt lutes have the strength and spring of steel and yet are one third lighter than aluminum. The bar is joined to the handle with a heavy duty casting that creates a rigid connection superior to weaker braced connections. The lute bar's serrated edge is formed with slightly blunted points and rounded notches to permit material to pass through without jamming. The ANSI red safety caps signify danger or alert people ensuring additional safety for lute operators. Bars are available in three formats and handles are available in lengths ranging 6' to 8'4" and are also available in fiberglass.
Specifications
LS = Lute Serrated
LP = Lute Plain
| Model No. Serrated | Model No. Plain | Bar | Handle | Wt. (lbs) |
|---|---|---|---|---|
| 246LS | 246LP | 24" | 1-1/2" X 6' | 3.2 |
| 306LS | 306LP | 30" | 1-1/2" X 6' | 3.4 |
| 366LS | 366LP | 36" | 1-1/2" X 6' | 3.6 |
| 426LS | 426LP | 42" | 1-1/2" X 6' | 3.8 |
| 486LS | 486LP | 48" | 1-1/2" X 6' | 4.1 |
| 247XLS | 247XLP | 24" | 1-1/2" X 7' | 3.6 |
| 307XLS | 307XLP | 30" | 1-1/2" X 7' | 3.8 |
| 367XLS | 367XLP | 36" | 1-1/2" X 7' | 4 |
| 427XLS | 427XLP | 42" | 1-1/2" X 7' | 4.2 |
| 487XLS | 487XLP | 48" | 1-1/2" X 7' | 4.5 |
| 2484LS | 2484LP | 24" | 1-1/2" X 8'-4" | 3.8 |
| 3084LS | 3084LP | 30" | 1-1/2" X 8'-4" | 4 |
| 3684LS | 3684LP | 36" | 1-1/2" X 8'-4" | 4.2 |
| 4284LS | 4284LP | 42" | 1-1/2" X 8'-4" | 4.4 |
| 4884LS | 4884LP | 48" | 1-1/2" X 8'-4" | 4.7 |
| 247LS | 247LP | 24" | 1-1/4" X 6'-9" | 3.6 |
| 307LS | 307LP | 30" | 1-1/4" X 6'-9" | 3.8 |
| 367LS | 367LP | 36" | 1-1/4" X 6'-9" | 4 |
| 427LS | 427LP | 42" | 1-1/4" X 6'-9" | 4.2 |
| 487LS | 487LP | 48" | 1-1/4" X 6'-9" | 4.5 |
Magnesium Asphalt Lutes with Fiberglass Handles
FLS = Fiberglass Lute Serrated
FLP = Fiberglass Lute Plain
| Model No. Serrated | Model No. Plain | Bar | Handle | Wt. (lbs) |
|---|---|---|---|---|
| 2484FLS | 2484FLP | 24" | 1-1/4" X 8'-4" | 4.7 |
| 3084FLS | 3084FLP | 30" | 1-1/4" X 8'-4" | 4.9 |
| 3684FLS | 3684FLP | 36" | 1-1/4" X 8'-4" | 5.1 |
| 4284FLS | 4284FLP | 42" | 1-1/4" X 8'-4" | 5.3 |
| 4884FLS | 4884FLP | 48" | 1-1/4" X 8'-4" | 5.6 |
Asphalt Lute Parts
| Model No. | Description | Wt (lbs) |
|---|---|---|
| 650H | 1-1/2" X 6' HANDLE W/ SAFETY TIP | 1.4 |
| 725H | 1-1/4" X 6'-9" HANDLE W/ SAFETY TIP | 1.8 |
| 750H | 1-1/2" X 7'-0" HANDLE W/ SAFETY TIP | 1.6 |
| 850H | 1-1/2" X 8'-4" HANDLE W/ SAFETY TIP | 2 |
| 825HF | 1-1/4" X 8'-4" FIBERGLASS HANDLE W/ SAFETY TIP | 2.9 |
| 125ST | 1-1/4" SAFETY TIP | 0.1 |
| 150ST | 1-1/2" SAFETY TIP | 0.1 |
| 125LH | 1-1/4" LUTE BAR HOLDER SET | 0.7 |
| 150LH | 1-1/2" LUTE BAR HOLDER SET | 0.8 |
| 24LS | 24" BAR SERRATED ONE SIDE | 1 |
| 30LS | 30" BAR SERRATED ONE SIDE | 1.1 |
| 36LS | 36" BAR SERRATED ONE SIDE | 1.4 |
| 42LS | 42" BAR SERRATED ONE SIDE | 1.5 |
| 48LS | 48" BAR SERRATED ONE SIDE | 1.6 |
| 24LP | 24" BAR PLAIN BOTH SIDES | 1 |
| 30LP | 30" BAR PLAIN BOTH SIDES | 1.2 |
| 36LP | 36" BAR PLAIN BOTH SIDES | 1.5 |
| 42LP | 42" BAR PLAIN BOTH SIDES | 1.6 |
| 48LP | 48" BAR PLAIN BOTH SIDES | 1.7 |
Shipping
Packaging
Contact your dealer for details.
| Description | L | W | H | CTN WT |
|---|---|---|---|---|
| 6 Pack-6' Complete | 73 1/4 | 8 1/4 | 3 3/4 | 1.8 |
| 6 Pack-7' Complete | 82 1/4 | 8 1/2 | 3 3/4 | 1.8 |
| 6 Pack-8 1/2' Complete | 100 3/4 | 8 1/4 | 3 3/4 | 2.2 |
| 6 Lute Bars | 36 1/4 | 8 1/4 | 2 1/4 | 0.8 |
| 12 Lute Bars | 36 1/4 | 8 | 4 1/4 | 1 |
| 18 Lute Bars | 36 1/4 | 8 | 6 | 1.3 |
Frequently Asked Questions
Why are magnesium asphalt lutes better than aluminum asphalt lutes?
Magnesium lutes are 33% lighter than aluminum and have the strength and spring of steel. They are also resistant to abrasion and dissipate heat.
How do I choose the right asphalt lute?
Selecting the optimum bar width, handle length, and bar type for your project is essential. A shorter bar width is suitable for tight spaces while longer bars are great for large areas. When choosing a handle length consider a comfortable length for your operators as well as the control needed for your project. Plain bars are for smoothing surfaces while serrated bars permit material to pass through without jamming.
How do I order lutes and parts?
- Handle (includes a red safety tip)
- Lute Bar (Rake Head)
- Lute Bar Holder (connection bracket which includes all bolts)
When placing a lute order simply choose:
- Handle length
- Bar length /Serrated or Plain
(The correct bar holder will be included)
You may also order individual parts as shown below. Please refer to our line card that shows part numbers and other information.
Completed lutes are packaged 6-per carton.
What is an asphalt lute used for?
A asphalt lute is a term that refers to a specific type of rake used in the construction industry. Surfa Slick lutes can be used for asphalt, golf course maintenance, baseball infields, landscaping, gravel, horse corrals, snow grooming, and parks and recreation.
Why doesn't the lute have cross braces?
The heavy duty aluminum bar holder which connects the handle to the bar creates a rigid connection superior to weaker braced connections.
What is the serrated edged used for?
The serrated edge has blunted points and rounded notches to allow for material to pass through with ease. The plain edge is used for smoothing and finishing.
What is the benefit of a fiberglass handle over magnesium?
Our fiberglass handles are tested to a conductivity breakdown point of 58.9 kilovolts.This means that it does not conduct electricity which is great for working around power lines.
How can I find an authorized dealer?
We have dealers throughout the continental United States, Alaska, Hawaii, and Canada. Please contact our sales staff for a dealer near you. See our contact page for information on how to reach us.
About Surfa Slick
Established in 1958 in Riverside, California, the Surfa Slick Magnesium Asphalt Lute was designed to meet the needs of our customers and provide a long lasting lute that will perform to their satisfaction. Skillful lute operators are vital to completing a smooth mat asphalt finish. Providing the right equipment will help prevent operator fatigue, accidents and help lower overhead expense. With that in mind our asphalt lute was designed to be both lightweight and rugged. This combination will provide a finish your customer will appreciate.
All of us at Surfa Slick are proud to provide you with the latest advancements in lute design and quality. We think you will agree by the long life of each of our products that Surfa Slick is committed to serving you today as well as tomorrow.
When you think asphalt lute, think Surfa Slick.
