Our Products
Magnesium Asphalt Lutes
Contact your dealer for details.

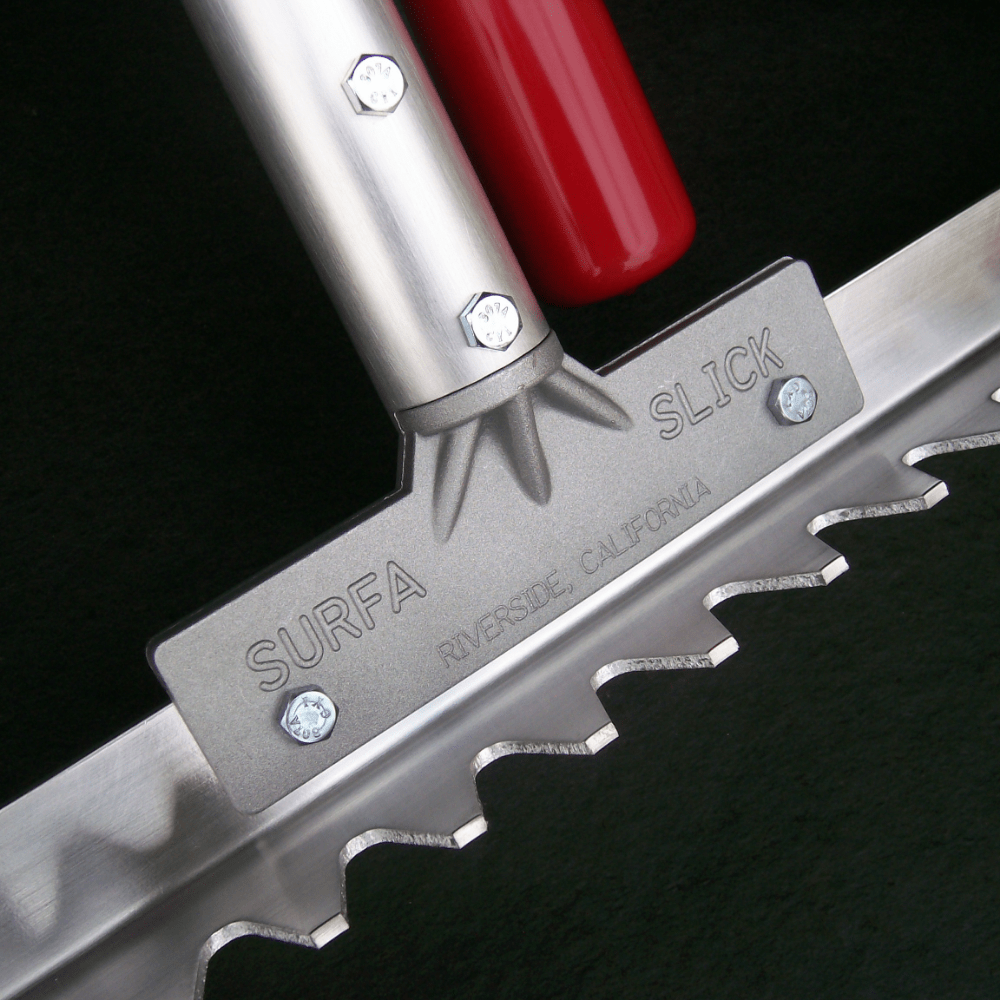

Our magnesium asphalt lutes have the strength and spring of steel and yet are one third lighter than aluminum. The bar is joined to the handle with a heavy duty casting that creates a rigid connection superior to weaker braced connections. The lute bar’s serrated edge is formed with slightly blunted points and rounded notches to permit material to pass through without jamming. The ANSI red safety caps signify danger or alert people ensuring additional safety for lute operators. Bars are available in three formats and handles are available in lengths ranging 6′ to 8’4″ and are also available in fiberglass.
Product Details
01
Complete Magnesium Asphalt Lutes
LS = Lute Serrated
LP = Lute Plain
| Model No. Serrated | Model No. Plain | Bar | Handle | Wt. (lbs) |
|---|---|---|---|---|
| 246LS | 246LP | 24" | 1-1/2" X 6' | 3.2 |
| 306LS | 306LP | 30" | 1-1/2" X 6' | 3.4 |
| 366LS | 366LP | 36" | 1-1/2" X 6' | 3.6 |
| 426LS | 426LP | 42" | 1-1/2" X 6' | 3.8 |
| 486LS | 486LP | 48" | 1-1/2" X 6' | 4.1 |
| 247XLS | 247XLP | 24" | 1-1/2" X 7' | 3.6 |
| 307XLS | 307XLP | 30" | 1-1/2" X 7' | 3.8 |
| 367XLS | 367XLP | 36" | 1-1/2" X 7' | 4 |
| 427XLS | 427XLP | 42" | 1-1/2" X 7' | 4.2 |
| 487XLS | 487XLP | 48" | 1-1/2" X 7' | 4.5 |
| 2484LS | 2484LP | 24" | 1-1/2" X 8'-4" | 3.8 |
| 3084LS | 3084LP | 30" | 1-1/2" X 8'-4" | 4 |
| 3684LS | 3684LP | 36" | 1-1/2" X 8'-4" | 4.2 |
| 4284LS | 4284LP | 42" | 1-1/2" X 8'-4" | 4.4 |
| 4884LS | 4884LP | 48" | 1-1/2" X 8'-4" | 4.7 |
| 247LS | 247LP | 24" | 1-1/4" X 6'-9" | 3.6 |
| 307LS | 307LP | 30" | 1-1/4" X 6'-9" | 3.8 |
| 367LS | 367LP | 36" | 1-1/4" X 6'-9" | 4 |
| 427LS | 427LP | 42" | 1-1/4" X 6'-9" | 4.2 |
| 487LS | 487LP | 48" | 1-1/4" X 6'-9" | 4.5 |
Magnesium Asphalt Lutes with Fiberglass Handles
FLS = Fiberglass Lute Serrated
FLP = Fiberglass Lute Plain
| Model No. Serrated | Model No. Plain | Bar | Handle | Wt. (lbs) |
|---|---|---|---|---|
| 2484FLS | 2484FLP | 24" | 1-1/4" X 8'-4" | 4.7 |
| 3084FLS | 3084FLP | 30" | 1-1/4" X 8'-4" | 4.9 |
| 3684FLS | 3684FLP | 36" | 1-1/4" X 8'-4" | 5.1 |
| 4284FLS | 4284FLP | 42" | 1-1/4" X 8'-4" | 5.3 |
| 4884FLS | 4884FLP | 48" | 1-1/4" X 8'-4" | 5.6 |
02
Asphalt Lute Parts
| Model No. | Description | Wt (lbs) |
|---|---|---|
| 650H | 1-1/2" X 6' HANDLE W/ SAFETY TIP | 1.4 |
| 725H | 1-1/4" X 6'-9" HANDLE W/ SAFETY TIP | 1.8 |
| 750H | 1-1/2" X 7'-0" HANDLE W/ SAFETY TIP | 1.6 |
| 850H | 1-1/2" X 8'-4" HANDLE W/ SAFETY TIP | 2 |
| 825HF | 1-1/4" X 8'-4" FIBERGLASS HANDLE W/ SAFETY TIP | 2.9 |
| 125ST | 1-1/4" SAFETY TIP | 0.1 |
| 150ST | 1-1/2" SAFETY TIP | 0.1 |
| 125LH | 1-1/4" LUTE BAR HOLDER SET | 0.7 |
| 150LH | 1-1/2" LUTE BAR HOLDER SET | 0.8 |
| 24LS | 24" BAR SERRATED ONE SIDE | 1 |
| 30LS | 30" BAR SERRATED ONE SIDE | 1.1 |
| 36LS | 36" BAR SERRATED ONE SIDE | 1.4 |
| 42LS | 42" BAR SERRATED ONE SIDE | 1.5 |
| 48LS | 48" BAR SERRATED ONE SIDE | 1.6 |
| 24LP | 24" BAR PLAIN BOTH SIDES | 1 |
| 30LP | 30" BAR PLAIN BOTH SIDES | 1.2 |
| 36LP | 36" BAR PLAIN BOTH SIDES | 1.5 |
| 42LP | 42" BAR PLAIN BOTH SIDES | 1.6 |
| 48LP | 48" BAR PLAIN BOTH SIDES | 1.7 |
03
Packaging
Contact your dealer for details.
| Description | L | W | H | CTN WT |
|---|---|---|---|---|
| 6 Pack-6' Complete | 73 1/4 | 8 1/4 | 3 3/4 | 1.8 |
| 6 Pack-7' Complete | 82 1/4 | 8 1/2 | 3 3/4 | 1.8 |
| 6 Pack-8 1/2' Complete | 100 3/4 | 8 1/4 | 3 3/4 | 2.2 |
| 6 Lute Bars | 36 1/4 | 8 1/4 | 2 1/4 | 0.8 |
| 12 Lute Bars | 36 1/4 | 8 | 4 1/4 | 1 |
| 18 Lute Bars | 36 1/4 | 8 | 6 | 1.3 |
